Electric Scooter Internal Components

July 22, 2021

See below for a full view of the internal electronic components of the Levy electric scooter.

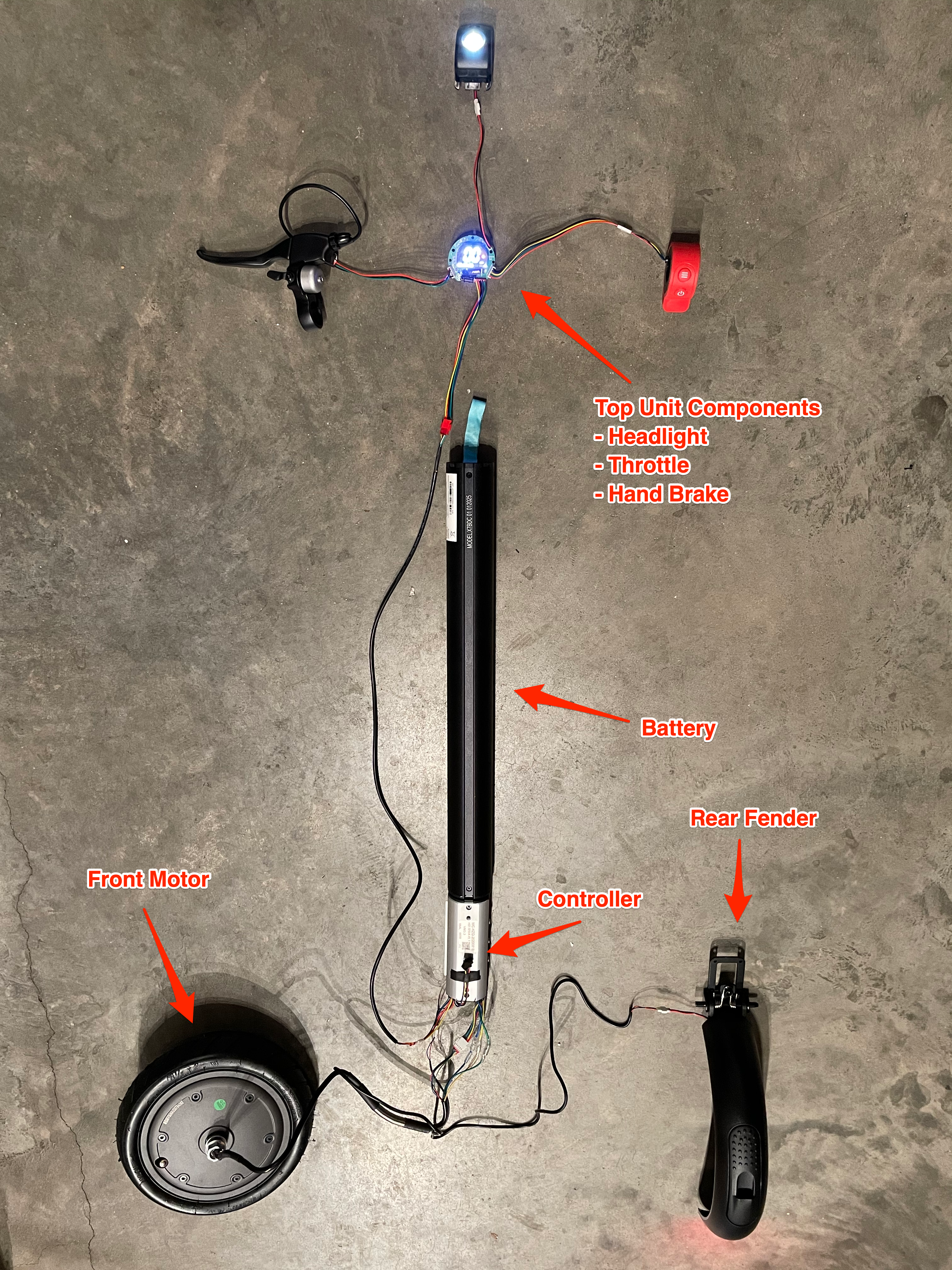

Exploded view of all internal components

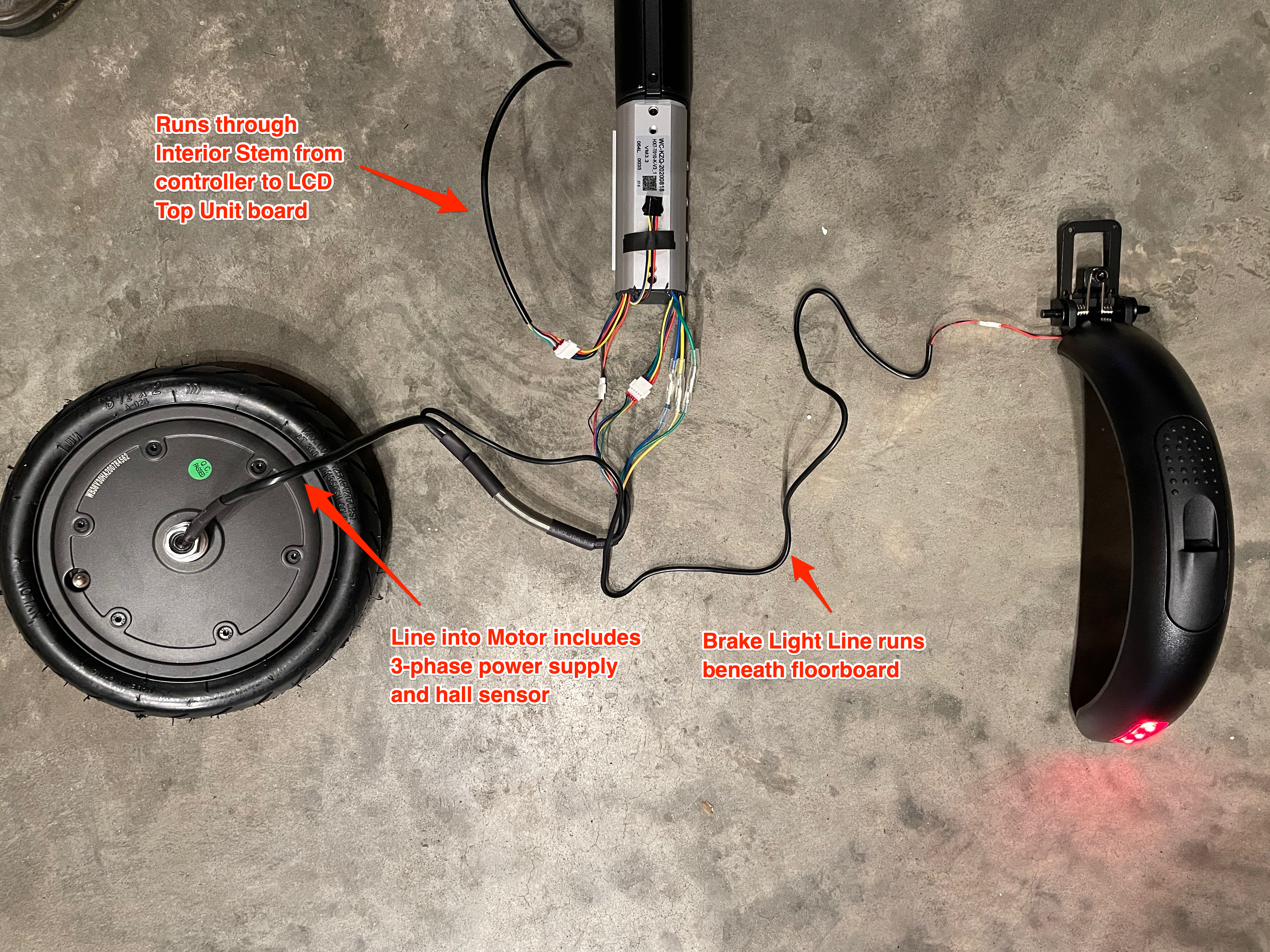

Bottom Components: Motor, Controller, Rear Fender

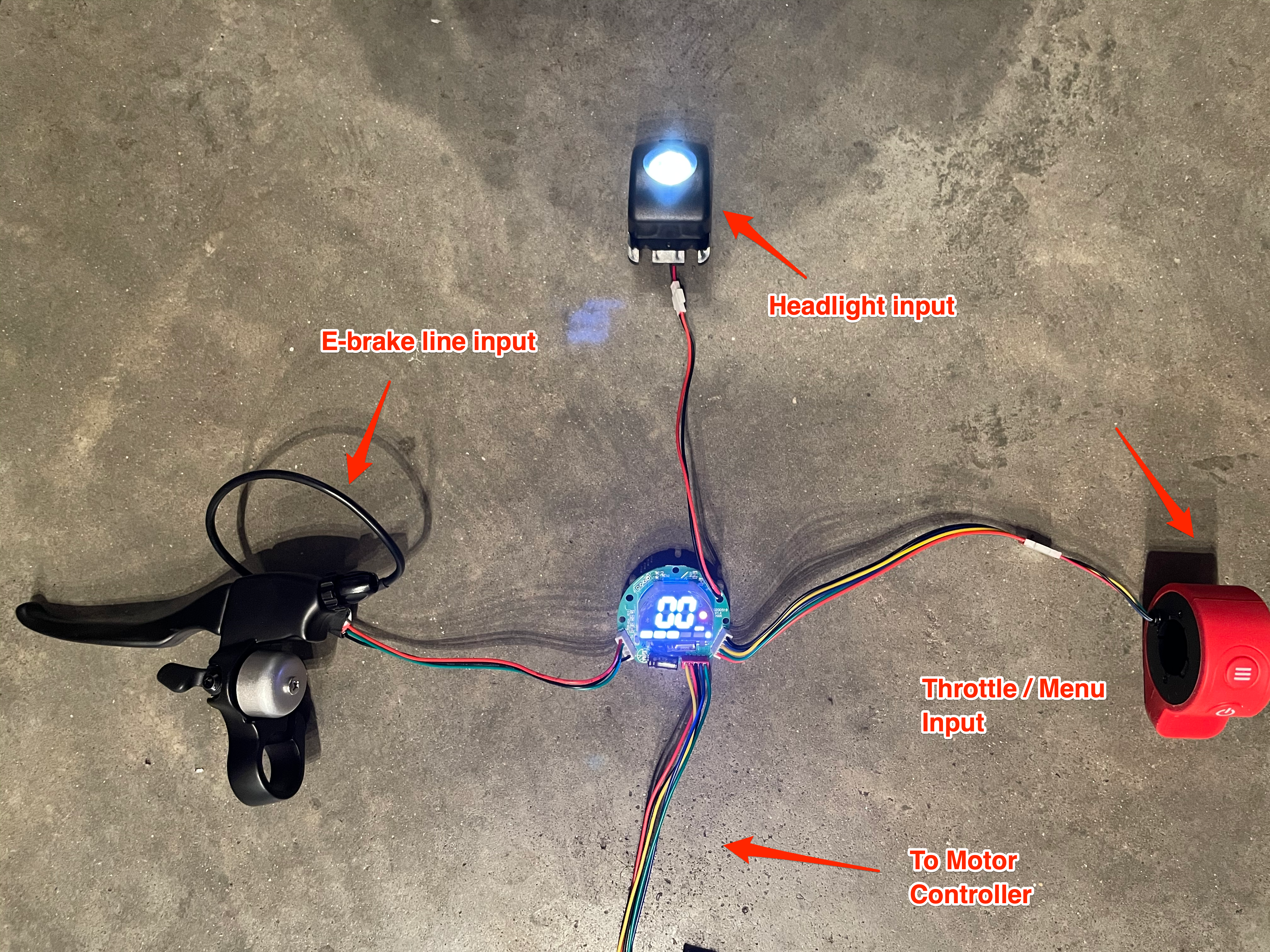

Top Components: LCD Display, Throttle, Brake Handle, Headlight

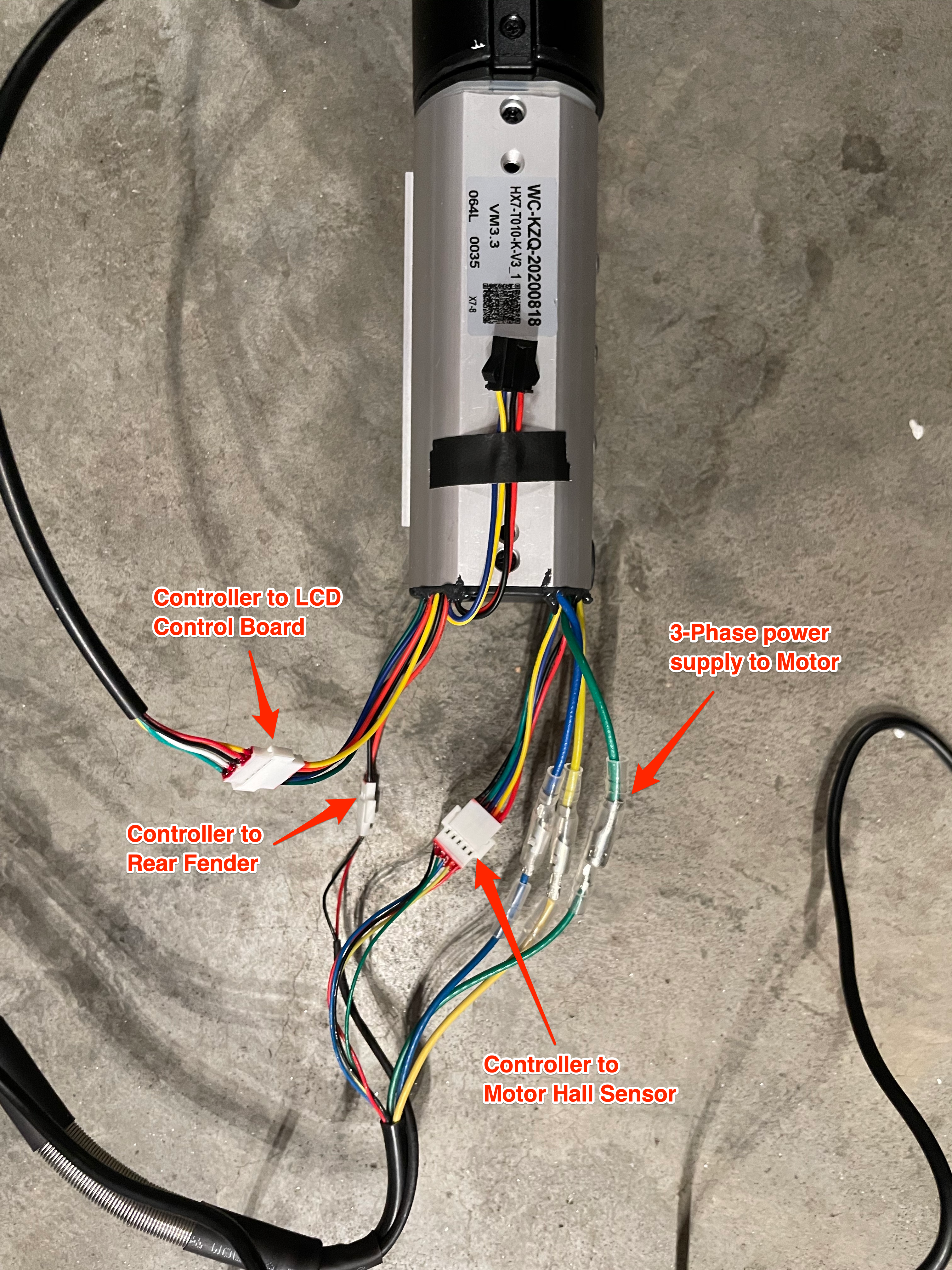

Controller Connections
