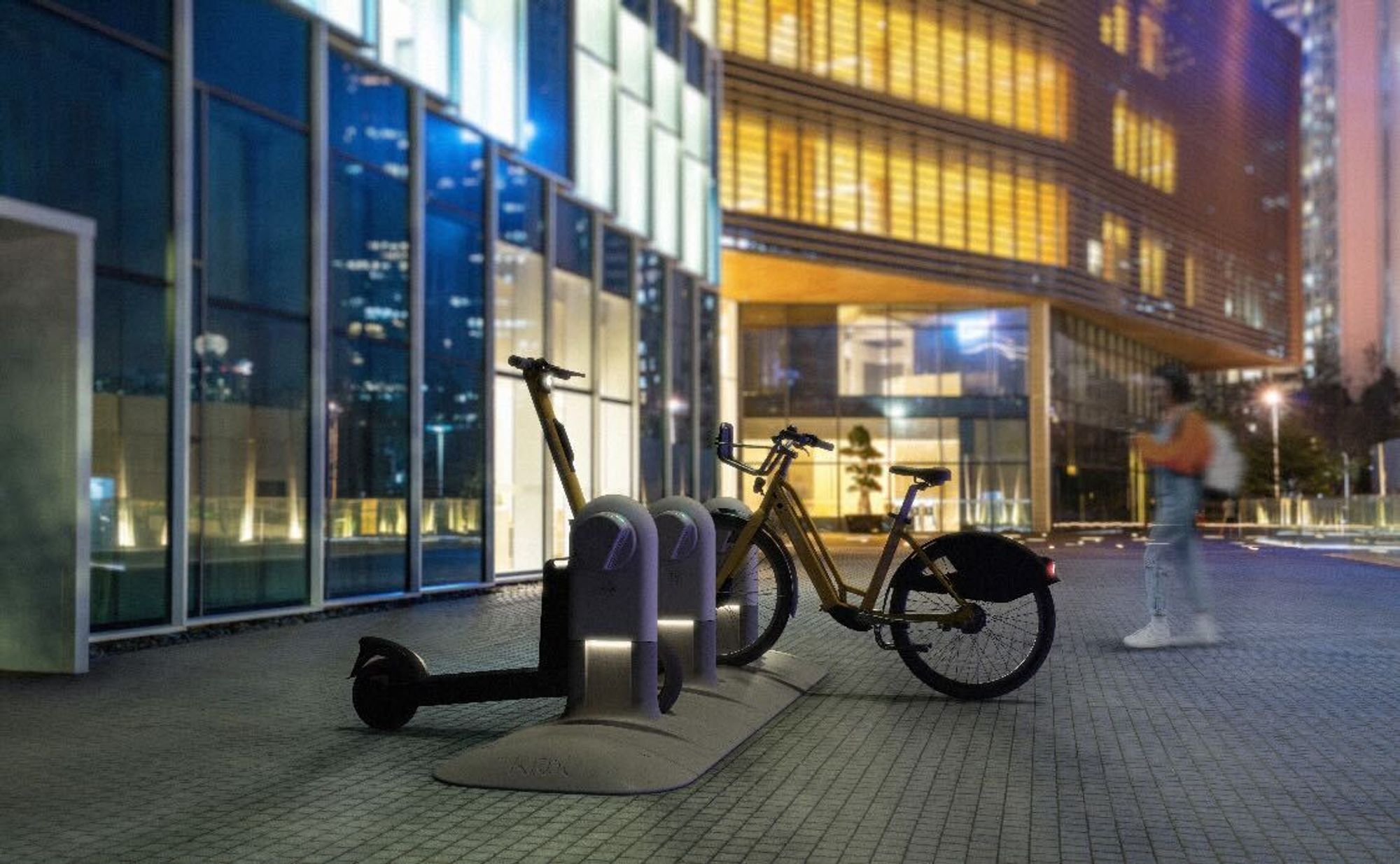

Knot Docking Station Specs

CHARGING

• Each station can charge up to 24 vehicles simultaneously.

• Intelligent charging system sets charging speed automatically based on vehicle count.

• Operator defines battery voltage, charge rate, ambient temperature, and charging strategy.

VEHICLE IDENTIFICATION

• Automatic vehicle identification when inserted into the station.

• Registers ride end and verifies network affiliation.

LOCKING

• Vehicle locked even with identification failure, or lack of cellular or electrical connection.

• Remains locked until battery reaches minimum level set by operator.

UNLOCKING

• User unlocks via mobile app or RFID badge, operator via web interface or mechanically.

CELLULAR NETWORK CONNECTION

• Connection via 2G, 3G, 4G, LTE-M with multi-operator SIM card.

• OTA updates for new functionalities.

ALERTS

• Sound and light alerts for various vehicle statuses (availability, unlocking, identification).

Tech Specs

• Station Base: Fiber-reinforced concrete / Pig iron / Stainless steel

• Main Board: PCB resin for protection

• Firmware: Remote update

• Electric Connection: Voltage range 105..300 VAC, Max power 300W

• Charging Time: Approx 6 hours for full charge, 1 hour for rapid charge

• Protection: At least IP54, varnished electronic boards

• Condensation and Overheating Prevention: Passive ventilation, temperature range -20°C to +55°C

Floor Plans and Dimensions - see attached
