Levy Plus Battery Connection

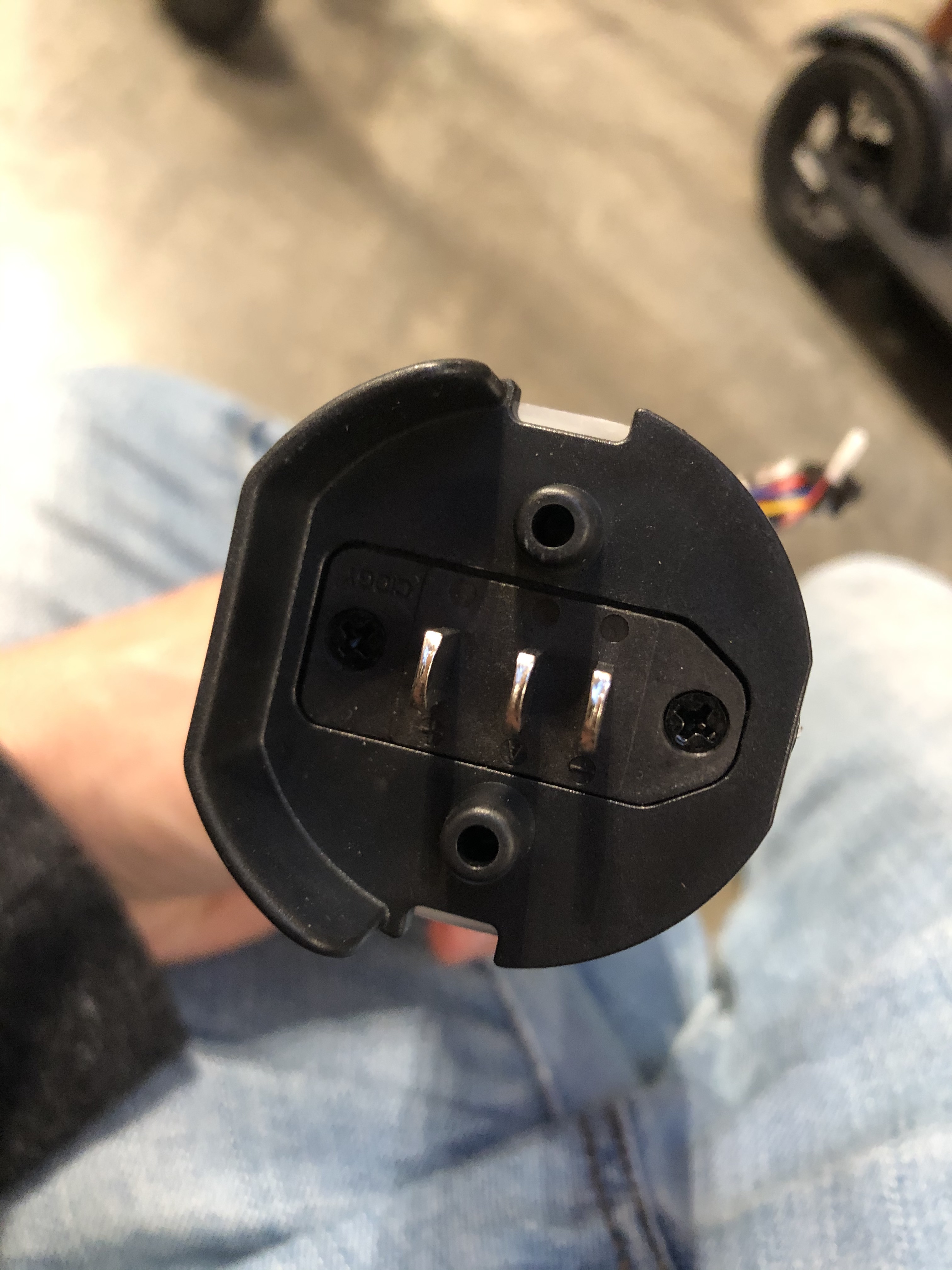

Levy has newly designed controllers and batteries. Pictured below are the connection points for the Levy Plus 3 Pin Connection.

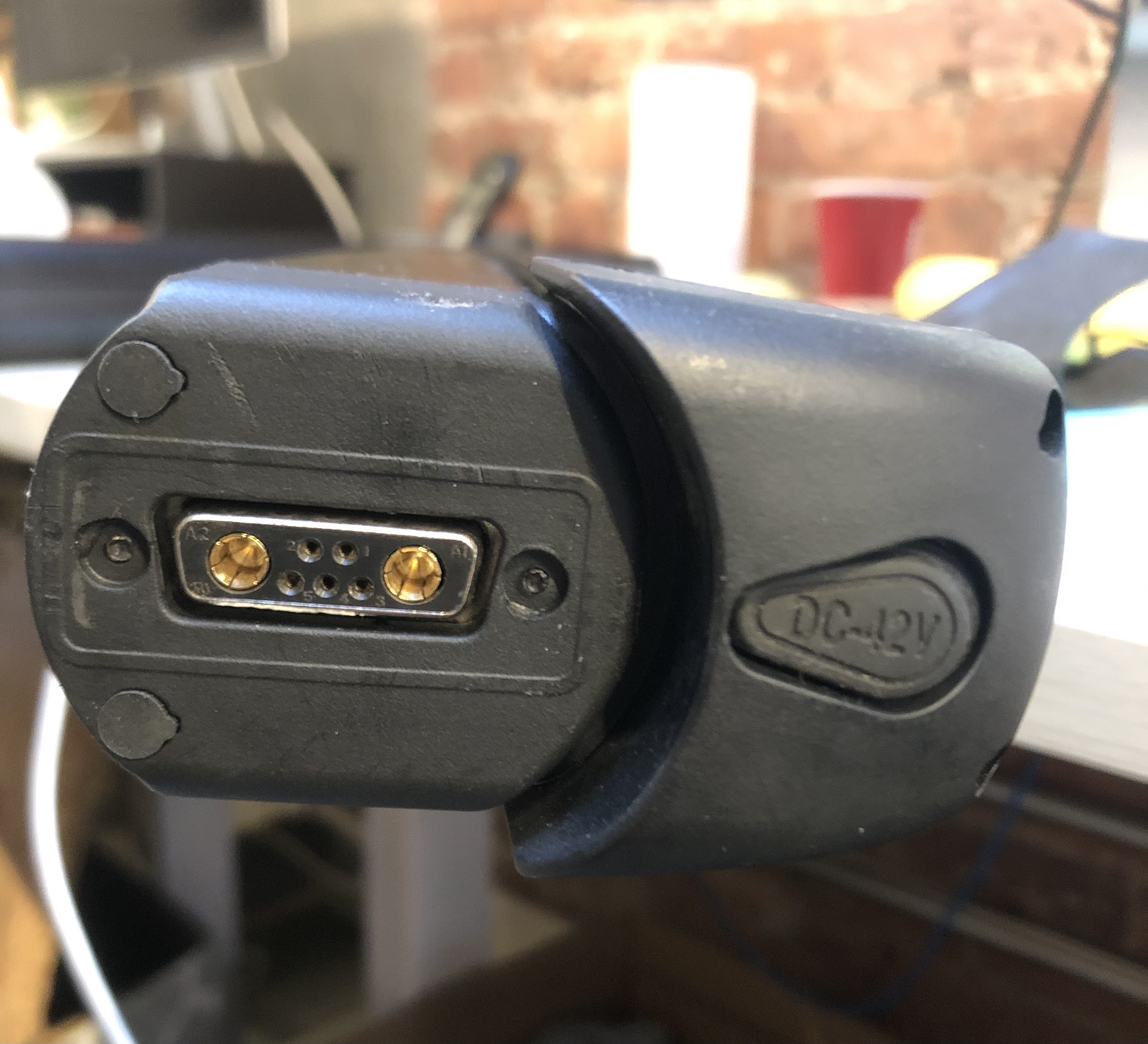

The connection pins for previous versions are pictured below. If your Levy Plus Scooter has battery plugs that look like the ones pictured below, it is considered a Levy Plus 7 Pin Connection.
If you are looking to replace the controller or battery, please know that you would have to replace both for them to be compatible. A 7 pin controller will not fit a 3 Pin battery. However, any Plus scooter can have a 3 pin controller installed to make it compatible with the newest battery. Please reach out to support@levyelectric.com if have any more questions about compatibility.
