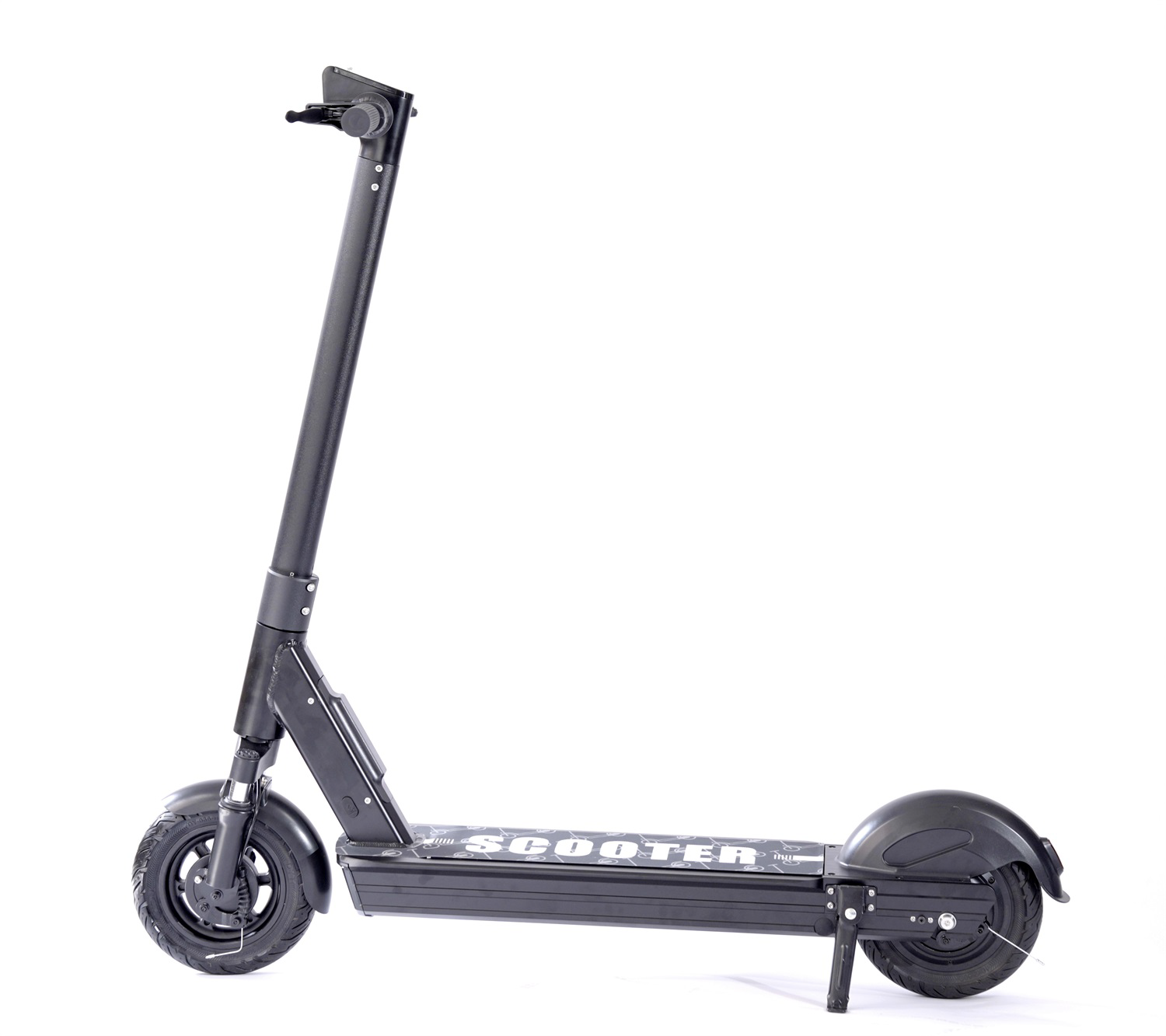

Fitrider TS10

• Max. Speed: 30km/h (18.6mph) / Default: 25km/h (15.5mph)

• Typical Range: 60-65km

• Net Weight: 24.4kg (53.8lbs)

• Max. Loading: 120kg (264lbs)

• Tires: 10*2.5inch, front and rear solid tire.

• Motor (Nominal Power): Rear brushless motor,48V,500W

• Brake: Front and Rear dual-drum brake

• Max. Slope: 12°

• Display: LED Display

• Light: Built-in LED headlight and taillight

• Shock-absorption: Front fork shock-absorber

• IP Rating: IP56 for vehicle, IPX7 for battery

• Frame Material: Aluminum alloy; reinforced tube; CNC processing; T4/T6 heat treatment

• Footmat: PVC sticker; customizable logo, monogram, and color

• Ring Bell: Yes

• Kickstand: Steel kickstand

• Max steering angle : 54°

• Concealed wiring: All wiring hidden

• Foldable: Non-foldable

Battery:

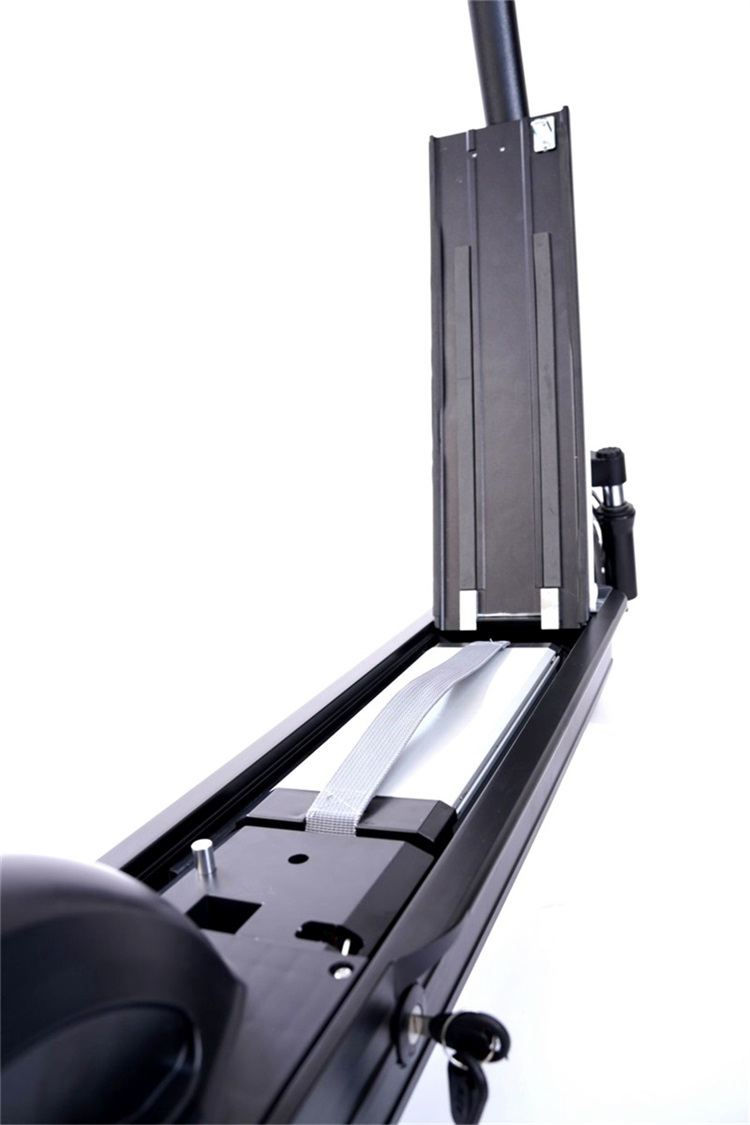

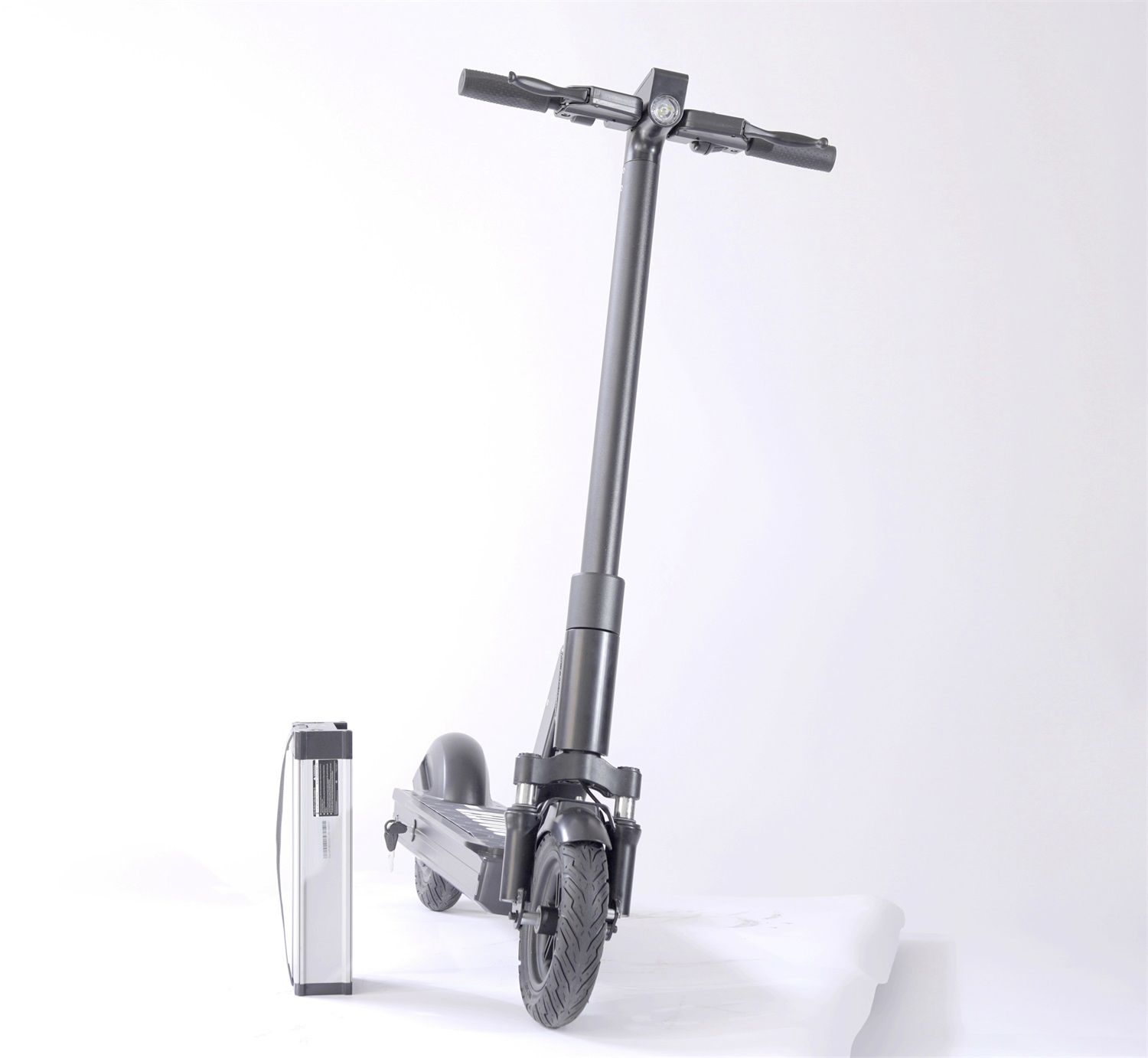

• Type: Swappable battery with CNC aluminum case

• Lock: Mechanical, electronic optional

• Nominal voltage: 46.8V

• Capacity: Chinese 13Ah (65pcs 2600mah cells, 608.4Wh); LG16Ah optional

• Fuse: Double fuses

• Charger: 54.6V / 2A

• Duration of Charging: 5-6hrs

IoT device:

• Communication Protocol: MQTT protocol

• 4G Communication: LTE CAT4

• Backup Battery: 3.7V / 1000mAH (battery life: >10h)

• Sim Card: 3FF (1.5*1.2cm)

• OTA: Support

• Other Features: Geo-Fencing; Electronic Horn; Triaxial Accelerometer etc.
