Modify Server Configuration on Okai Rental Vehicles (Scooters + Bikes)

How to modify server configuration using ZK1xx series debugging software



When you receive our scooters/ E-bikes, Please charge them first then activate the IoT (Poke the IoT concealed button for

~10 seconds), IoT will wake up in normal mode (for Mass production vehicles). In order to configure the IoT using debugging software IoT need to be switched to test mode.

If your IoT is already connected to server, you can convert IoT into test mode from your server. If you can’t switch it from your server, please contact OKAI FAE to switch the work mode of IoT.



To check IoT current status please refer the following table:



ZK Series LED Definition

No.

White LED

Red LED

Description

1

OFF

OFF

In INACTIVE mode

2

Alternating Flashing

In TEST mode

3

ON (Breathing)

OFF

In Normal mode:Normal

4

OFF

Flashing

In Normal mode:ECU fault

5

OFF

ON

In Normal mode:IOT fault



Prerequisites:

  1. PC with ZK1 series debugging software (ZK manage tool) installed in it.

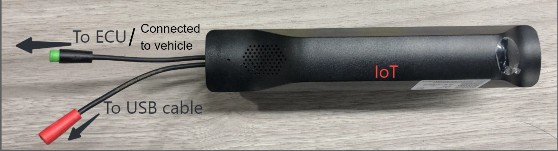

  2. IoT USB- Debugging Cable ( shown in figure below).




ZK1 Series Debugging Cable



Procedure:

Before starting, IoT need to be taken out from the scooter/E-bike fixture to access the debugging cable. Please follow the respective SOP for IoT disassembly or ask OKAI representative about it.

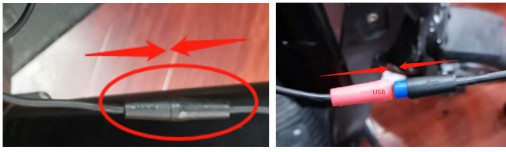

  1. Connect the IOT (in test mode) with the scooter/ E- bike and the USB cable respectively. Your connection should be as shown in figures below:

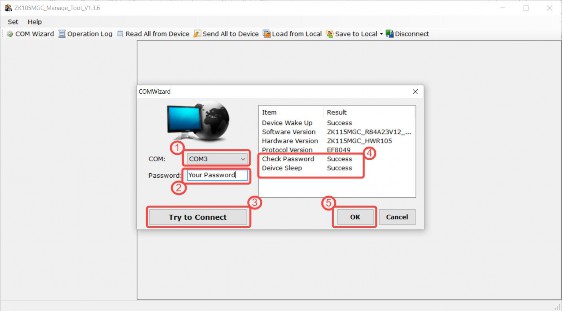

  2. Open ZK1 series debugging software in your laptop. Select the correct COM port and insert your correct password in

    Password field and then click Try to connect button



  3. After successful connectivity (As highlighted in picture below with label 4) press OK

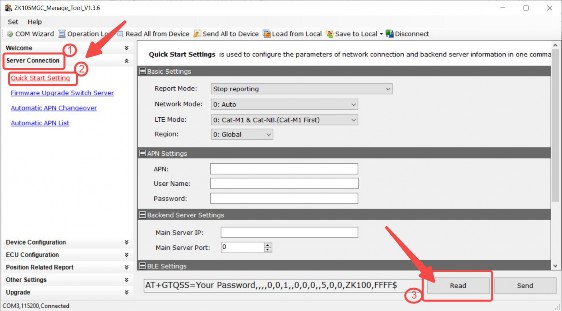

  4. Navigate to Server Connection → Quick Start Setting and then press Read button to read the current set configuration

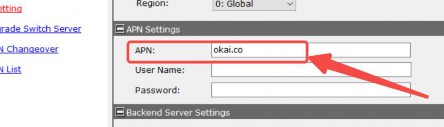

  5. If you are using OKAI’s sim card APN should be okai.co. If you want to change the sim card to your own sim card it is necessary to modify this APN value to your own SIM card APN :

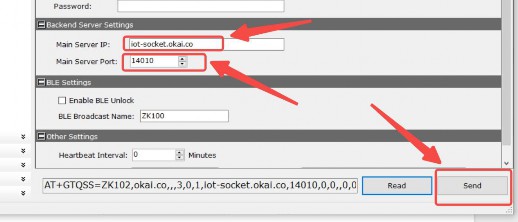

  6. Write your server IP in Main Server IP field and server port in Main Server Port field

  7. After setting the correct APN, IP and Port click Send button to set the configuration, IOT will be rebooted and will be connected to your server after approximately 30-90 seconds (Re-connection time depends upon the current signals strength)






  8. After IoT successfully connected to your server please convert the IoT work mode back to the normal mode from your server using mode switch command:

    AT+GTXWM=Password,01,,,,,,FFFF$ (‘Password’ should be replaced with your own password)



    • Please follow all above steps carefully. In case of any abnormality during the above mentioned process, please contact OKAI tech team.
